Pperates as an IoT connectivity transceiver, with an external STM32 host MCU running applications

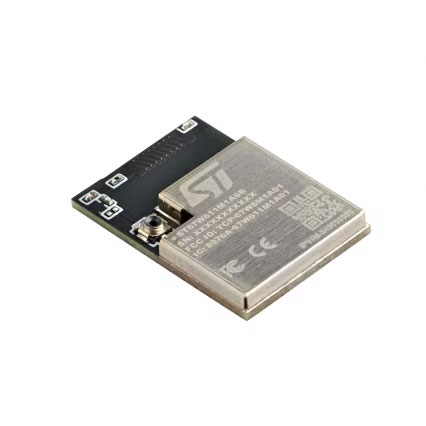

ST67W611M1
The STMicroelectronics ST67W611M modules deliver certified Wi-Fi® 6 and Bluetooth® LE connectivity, seamlessly integrating with STM32 MCUs or MPUs to add wireless capabilities.
Future-ready, they will support the Matter protocol (Q3 2025) and Thread (Q4 2025) through software updates, ensuring compatibility with the latest IoT standards.
Features
- Wi-Fi® 6 and Bluetooth® Low Energy (LE) stacks embedded in the module
- Wi-Fi® output power up to +21 dBm
- Wi-Fi® 6 Target Wake Time (TWT) support
- Low-power modes down to 0.2 µA
- Embedded 4 Mbytes of flash with OTA (Over-the-Air) update capability
- Embedded 40 MHz crystal
- Integrated balun, power amplifier (PA), low-noise amplifier (LNA), and RF switch
Applications
- Internet of Things (IoT)
- Smart Home devices
- Industrial Networks
- Edge Computing
- Healthcare systems
